Operating a splash pad system does not need to be complicated. Our design team will walk you through the types of mechanical systems available for your installation. We will review from the design and selection of equipment to operating and maintaining the system.

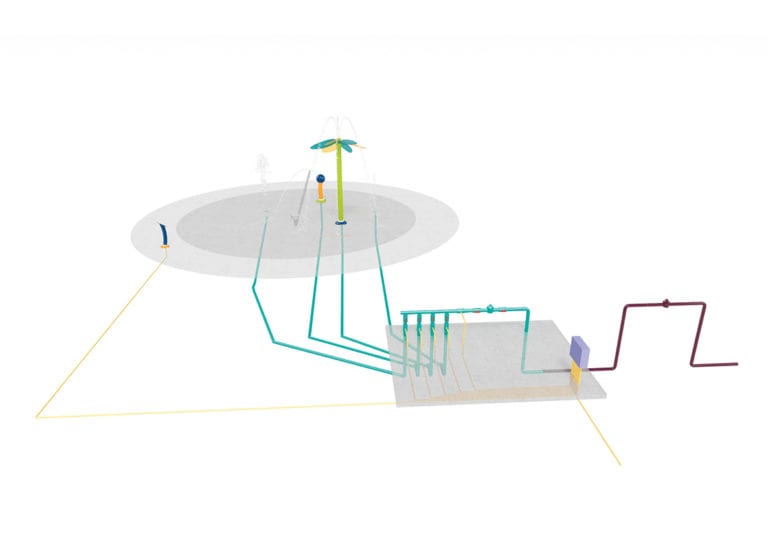

Pass-Through Systems
Design a cost-effective splash pad when water consumption is unregulated. Domestic single-pass systems are ideal for limited use and/or minimum water consumption. Reclaim water by routing to a retention pond and reuse for irrigation.
Domestic Water Systems are housed in either above ground enclosures or below ground vaults. Equipment systems consist of the following components:
- Control panel
- Drain to waste outlets
- Aquavator activation bollard
- Water distribution manifold
- City water system equipment vault
- Equipment enclosure

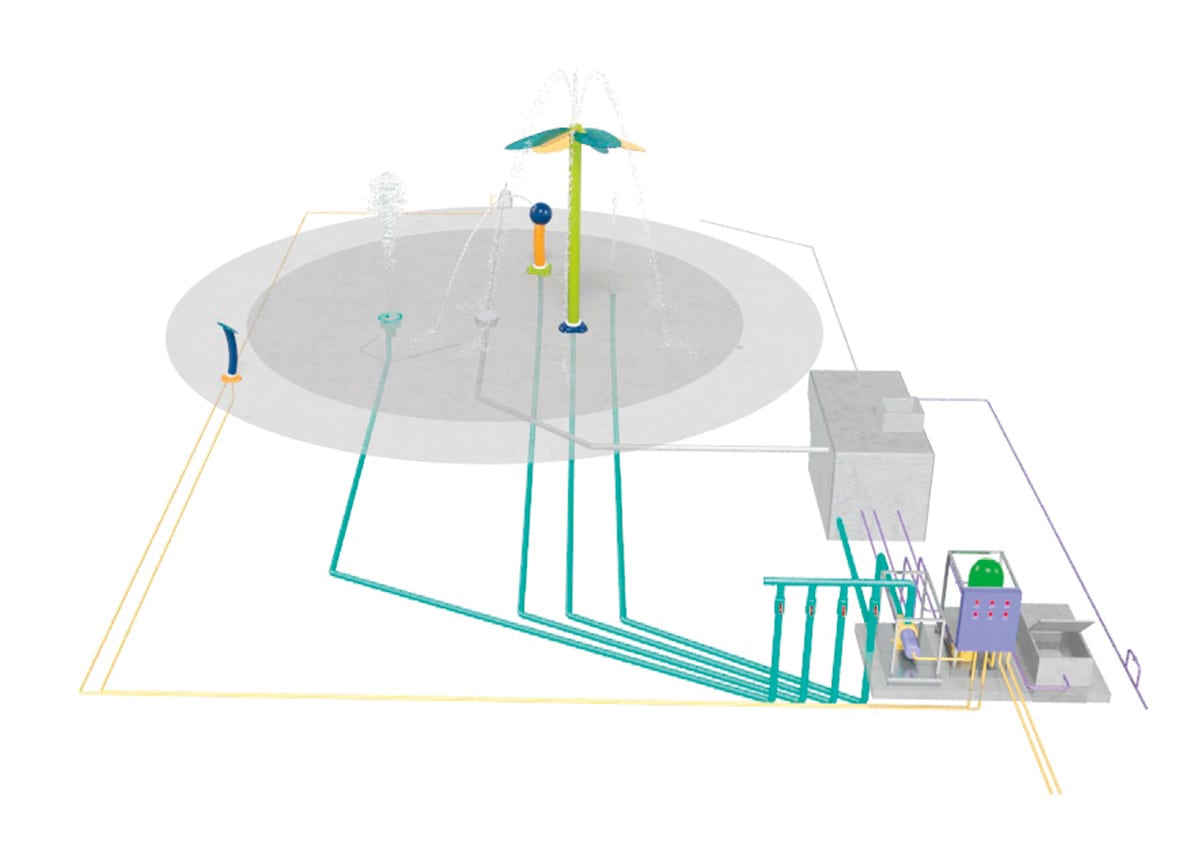

Recirculation Systems
Create a safe and fun splash pad without water consumption limits. Our industry-leading water quality treatment systems save millions of gallons of water annually, are easy to operate, and meet or exceed local health department regulations.
Equipment operating systems are available in either above ground skid mounted systems or underground vault systems. Operating systems will provide complete filtration and chemical treatment of water to ensure safe water play. Operating systems are UL Listed and incorporate NSF listed equipment. Each Recirculation system is designed for project specific needs. All operating systems are provided with the following pre-plumbed, pre-wired components:
- Filtration skid
- Aquavator product activation bollard
- Control panel
- Water reservoir tank
- Drain to waste valve box
- Feature pump skid
- Optional above ground skid enclosure
- Recirculation system equipment vault
- Chemical treatment vault
- Water distribution manifold
- Ultra-violet disinfection
- Collector Boxes
Domestic System Powered by HydroLogix®

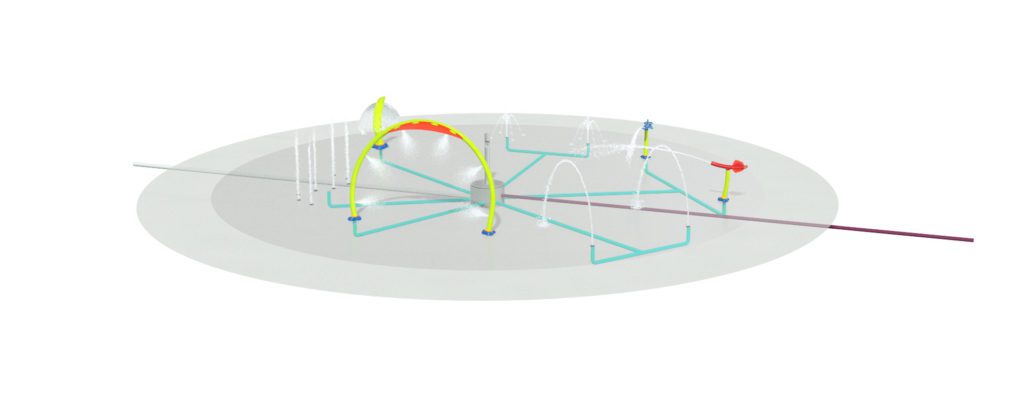

The patented HydroLogix® system is a non-electrical domestic water delivery system you can use to power many of your favorite splash pad designs. This entire system is fabricated from durable stainless steel materials that are vandal and corrosion-resistant. Ideal water pressure is 30 to 40 psi which will deliver 60 gallons per minute to aqua playstructures and ground sprays.Get creative with your design and use two Hydrologix systems side by side! Each HydroLogix system is comprised of:
- Activation Bollard
- Drain-to-waste outlet
- Water Distribution Manifold
AquaSmart® Packages Powered by HydroLogix
You can place a ready to install, self-contained splash pad just about anywhere, especially when electrical service is prohibitive or unwanted with our AquaSmart® Packages powered by HydroLogix.
Detailed Illustration (pdf)Repurpose Systems
Designed to be a sustainable cost-effective solution eliminating wasted water. The typical Pass Through Water System waste water can be circulated from the pad to a repurposed storage tank for irrigation. Consult with our team to see if this system is suitable for your location.
Contact UsMechanical System Accessories
Activation Devices

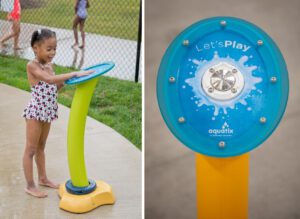

Aquavator Activation Bollard
Children activate water flow by touching the top of the touch-sensor post.

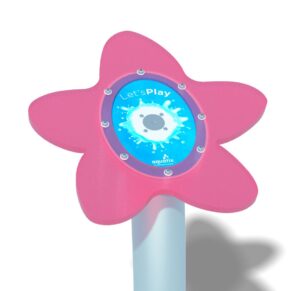

Aquavator Flower Activation Bollard
Children activate water flow by touching the top of the flower touch-sensor post.

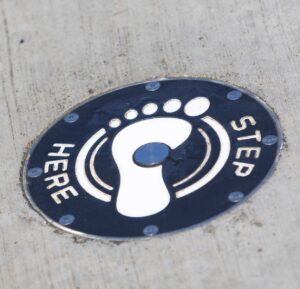

Flush-Mount Step Activator
Children activate water flow by touching the sensor with their feet.
Control Panels
Pass-Through System
- Intuitive Splash Pad Touch Pad, designed for flow regulation and water conservation, with easily adjustable programming.
Recirculation System
- Integrated controls for complete recirculation system
- Alarm systems, rain diverting, with easily adjustable programming
Pool-Spray Feature
- Contacts for interface with feature pump(s) and easily adjustable programming
